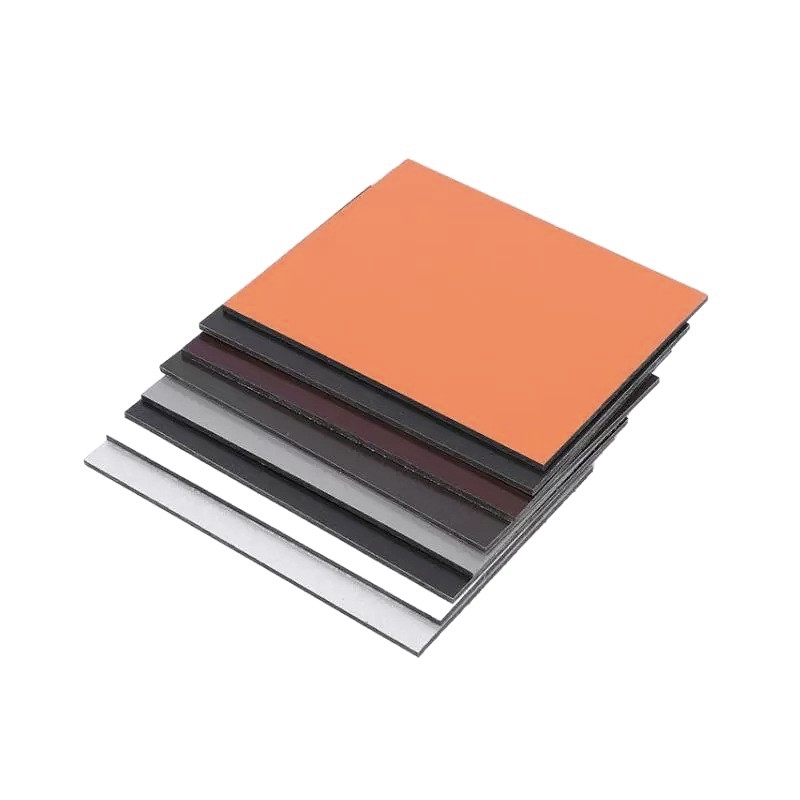

You buy top-quality panels. You choose the right aluminum composite panel supplier. The material arrives in perfect condition.

Then your router ruins it.

Inconsistent grooves. Worn bits. Wrong depth settings. Cracks appear at the fold line. Panels get scrapped. The project falls behind.

The problem is not the panels. The problem is the router setup.

This guide shows you exactly how to set up your router for flawless grooving. You will learn a step-by-step procedure. You will understand the critical parameters. And you will know how to verify your setup before cutting production panels.

What You Need Before You Start

Gather these items before setting up your router:

- Digital micrometer (0.001mm resolution)

- 0.3mm feeler gauge

- Dial indicator for Z-axis calibration

- Sharp carbide or diamond router bit

- Clean work surface

- Panel scrap for test cuts

- Calibration records sheet

Caption: Essential tools for accurate router setup and verification.

Alt text: Digital micrometer, feeler gauge, dial indicator, and carbide router bit arranged on a workbench for Alucobond grooving setup.

Step 1: Choose the Right Router Bit

       The bit determines groove quality. Choose wisely.

Bit Material

Carbide bits cut cleanly and hold their edge. Diamond bits last even longer. High-speed steel bits wear quickly and create rough grooves.

For production work, use carbide or diamond. The higher cost pays for itself in reduced scrap and longer tool life.

Bit Shape

U-shape bits produce rounded groove bottoms. V-shape bits produce sharp groove bottoms.

U-shape bits distribute stress evenly. They reduce cracking. Use them for exterior panels and structural applications.

Bit Diameter

The bit diameter determines groove width. Standard diameters range from 4mm to 8mm.

For 4mm panels, a 6mm bit works well. For 3mm panels, a 4mm bit is suitable.

Recommended Router Bit Specifications

Caption: Recommended router bit specifications for Alucobond grooving.

Alt text: Table listing recommended router bit specifications including tool material, bit shape, diameter, shank size, and flute count.

Step 2: Install the Bit Properly

Proper installation prevents runout and vibration.

Clean the collet before inserting the bit. Remove any debris or dust. A dirty collet causes the bit to wobble.

Insert the bit fully into the collet. Then pull it back slightly — about 1mm. This allows for thermal expansion during cutting.

Tighten the collet nut firmly. Do not overtighten. Overtightening damages the collet and causes runout.

Check for runout after installation. Use a dial indicator. Maximum runout should not exceed 0.02mm.

Caption: Proper router bit installation in the collet assembly.

Alt text: Close-up of a router bit being inserted into a collet on a CNC router for Alucobond grooving.

Step 3: Calibrate the Z-Axis

The Z-axis controls routing depth. Inaccurate Z-axis settings cause inconsistent grooves.

Zero the Tool

Place a flat reference surface on the router table. Lower the router bit until it just touches the surface. Set this as your zero point.

Use a piece of paper to confirm contact. Slip the paper between the bit and the surface. Move the bit down until the paper catches. This gives you a precise zero.

Set the Routing Depth

Routing depth determines residual thickness. For a standard 4mm panel, the residual thickness should be 0.3mm.

The formula is simple:

- Panel thickness: 4mm

- Front aluminum skin: 0.3mm

- Residual core: 0.3mm

- Routing depth: 4.0 - 0.3 - 0.3 = 3.4mm

Set your routing depth to 3.4mm below the surface of the front skin. This leaves 0.3mm of core material on top of the front skin.

Verify Calibration

Use a dial indicator to verify Z-axis accuracy. Move the Z-axis through its full range. Check for consistent movement.

Calibrate the Z-axis daily. Some shops calibrate at the start of every shift. Calibration takes two minutes. It saves hours of scrap.

Caption: Z-axis calibration procedure showing zero point and depth setting.

Alt text: Diagram showing Z-axis calibration with zero point on the router table and routing depth set to 3.4mm for a 4mm panel.

Step 4: Set the Feed Rate and Spindle Speed

The feed rate and spindle speed work together. Get both right for clean grooves.

Feed Rate

Feed rate is how fast the router moves across the panel. Too fast and the bit chatters. Too slow and the bit burns the plastic core.

For a 6mm carbide bit, a feed rate of 3 to 5 meters per minute works well. Adjust based on bit size and material.

Spindle Speed

Spindle speed is how fast the bit rotates. Higher speeds cut faster but generate more heat. Lower speeds reduce heat but cut slower.

For carbide bits, 18,000 to 24,000 RPM works well. For diamond bits, 12,000 to 18,000 RPM is sufficient.

The Heat Factor

Heat is the enemy. Excessive heat softens the plastic core. The bit cuts deeper than intended. Grooves become inconsistent.

Use coolant or compressed air to cool the bit during cutting. This extends tool life and maintains groove consistency.

Recommended Cutting Parameters

Caption: Recommended cutting parameters for Alucobond grooving.

Alt text: Table of recommended cutting parameters including feed rate, spindle speed, cooling method, and depth per pass.

5: Test the Setup

Never start production without testing the setup. Test cuts take five minutes. They save hours of rework.

Cut a Test Strip

Cut a test strip from a scrap panel. Make it about 100mm wide and 200mm long.

Route a groove using your setup settings.

Measure Residual Thickness

Use a micrometer to measure residual thickness at the groove bottom. The reading should be 0.3mm minimum.

If the reading is below 0.3mm, adjust the Z-axis depth and test again.

Verify with a Feeler Gauge

Insert a 0.3mm feeler gauge into the groove bottom. It should fit without forcing.

If it does not fit, the residual thickness is too thin. Adjust and retest.

Fold the Test Strip

Fold the test strip along the groove. Use your production press brake.

Inspect the fold. Look for:

- Hairline cracks along the bend line

- Paint film cracking at the bend

- Uneven or inconsistent fold angle

If you see any of these, adjust your setup and test again.

Document the Results

Record these details for every setup:

- Date and time of setup

- Router bit type and size

- Z-axis zero point

- Routing depth setting

- Residual thickness measurement

- Feeler gauge result (pass/fail)

- Fold result (pass/fail)

This documentation proves your process meets specifications.

The Setup Verification Checklist

Use this checklist before every production run.

Caption: Router setup verification checklist for production grooving.

Alt text: Checklist showing eight verification items for router setup before production grooving of Alucobond panels.

Common Setup Mistakes and How to Avoid Them

Mistake 1: Skipping the Test Cut

Some operators assume the previous setup still works. Router bits wear. CNC calibration drifts. Panel thickness varies.

Fix: Test before every production run. Test at the start of every shift. Test after changing router bits.

Mistake 2: Ignoring Bit Wear

Worn bits create rough grooves. Rough grooves cause cracks. The groove quality degrades gradually. You may not notice until panels start cracking.

Fix: Track bit usage. Replace bits after a set number of cuts. Some shops replace them every 50,000 bends.

Mistake 3: Inconsistent Cooling

Inconsistent cooling causes inconsistent groove depth. The bit heats up. The plastic core softens. The bit cuts deeper.

Fix: Use consistent compressed air or coolant flow. Monitor the flow rate.

       Mistake 4: Assuming "Good Enough"

Variations as small as 0.1mm change the outcome. "Good enough" is not good enough.

Fix: Measure every setup. Record every measurement. Do not compromise.

What to Ask Your Aluminum Composite Panel Supplier

When you work with an **aluminum composite panel supplier, ask these questions:

1. What router bit specifications do you recommend? A knowledgeable manufacturer of aluminum composite panels will provide specific recommendations.

2. Do you offer pre-grooved panels? An OEM manufacturer ACM panels can deliver panels already grooved to specification. This eliminates on-site setup errors.

3. What is your fabrication quality control process? A reliable distributor of Alucobond panels will have documented quality procedures.

4. Can you provide setup documentation? An authorized dealer Alucobond will share technical data and best practices.

5. What is your scrap rate? High scrap rates indicate poor setup or technique.

Choose a wholesale supplier of ACM panels that understands these requirements. Buy factory direct aluminum composite panels from suppliers who control their manufacturing process. And look for wholesale price aluminum composite panels from suppliers who deliver quality, not just low price.

The Bottom Line

Router setup determines groove quality. Groove quality determines fold quality. Fold quality determines panel performance.

The setup procedure is simple:

1. Choose the right bit

2. Install it properly

3. Calibrate the Z-axis

4. Set feed rate and spindle speed

5. Test and verify

Follow these steps every time. Document every setup. Verify every measurement.

Your grooves will be consistent. Your folds will be clean. Your panels will perform.

Do not let poor setup ruin good panels.
