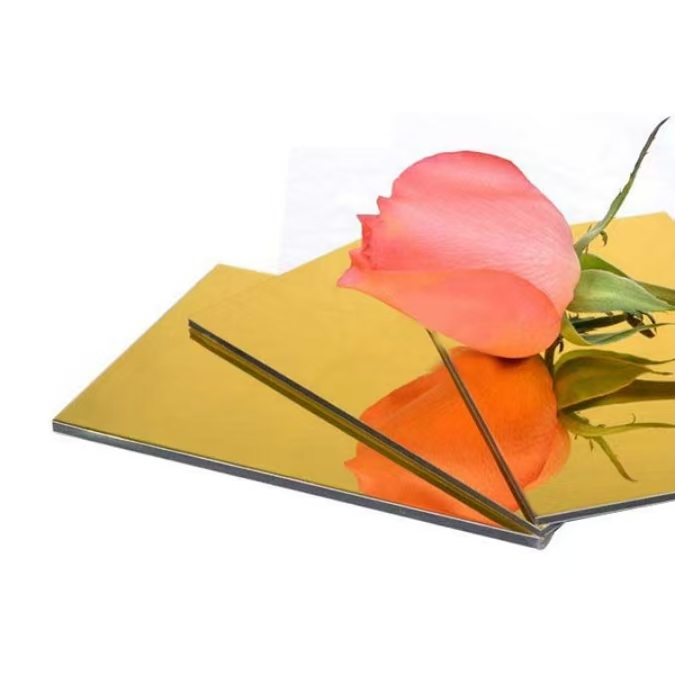

Mirror aluminum composite panel

Introduction: The Evolution of Reflective Architecture

Mirror aluminum composite panels (ACPs) represent a sophisticated advancement in architectural cladding, combining the dramatic visual impact of mirrored surfaces with the practical benefits of composite panel technology. These panels create striking visual effects while overcoming traditional limitations of glass mirrors in exterior applications. This professional guide explores the technical specifications, performance characteristics, and innovative applications of mirror ACPs in contemporary architecture.

Technical Composition and Manufacturing Excellence

Multilayer Construction

Mirror ACPs feature an engineered sandwich structure designed for optimal reflectivity and durability:

1. Surface Treatment Layer:

   - High-purity protective coating (typically PVDF or FEVE fluoropolymer)

   - Anti-scratch, anti-corrosion treatment

   - Optional anti-fingerprint nano-coating

2. Reflective Layer:

   - High-resolution mirror finish (80-95% reflectivity)

   - Vacuum deposition or electrolytic polishing process

   - Multiple coating layers for enhanced clarity

3. Aluminum Substrate:

   - Aircraft-grade aluminum alloy (3003/5005 series)

   - Precision-rolled for optimal flatness (Ra ≤0.2μm)

   - Thickness: 0.2-0.5mm per skin

4. Core Material Options:

   - Standard: Polyethylene (PE) core

   - Fire-safe: Mineral-filled fire-retardant (FR) core

   - Premium: Non-combustible (A2) mineral core

5. Backing Layer:

   - Protective coating system

   - Color-matched or contrasting finish options

Performance Specifications and Technical Advantages

Optical Properties

- Reflectivity: 85-95% (superior to conventional mirrors)

- Distortion: Minimal image distortion (<0.5% wavefront error)

- Clarity: High-definition reflection comparable to glass

- Color Temperature: Neutral reflection without yellow/blue tint

Durability Characteristics

- Shatter-proof: No risk of dangerous glass fragmentation

- Lightweight: 1/3 the weight of equivalent glass mirrors

- Flexible: Can be curved and formed without optical distortion

- Backing Protection: Coated back prevents aluminum oxidation

Design Applications and Architectural Innovation

Exterior Applications

1. Facade Systems:

   - Complete building envelope solutions

   - Rainscreen and curtain wall applications

   - Column covers and spandrel panels

2. Urban Integration:

   - Camouflage structures in sensitive environments

   - Reflect and enhance natural landscapes

   - Create "disappearing" architectural effects

3. Artistic Installations:

   - Interactive public art installations

   - Light reflection and redirection features

   - Dynamic facade expressions

Interior Applications

1. Space Enhancement:

   - Illusion of expanded space in confined areas

   - Light reflection for reduced energy consumption

   - Feature walls and ceiling applications

2. Commercial Design:

   - Retail displays and boutique interiors

   - Hospitality and entertainment venues

   - Corporate lobbies and reception areas

3. Functional Solutions:

   - Surveillance blind spots in security areas

   - Safety mirrors in industrial settings

   - Decorative elements with functional benefits

        Professional Specification Guidelines

Critical Selection Criteria

1. Reflectivity Grade:

   - Standard (85-88% reflectivity)

   - Premium (89-92% reflectivity)

   - Architectural (93-95% reflectivity)

2. Surface Treatment Options:

   - Standard protective coating

   - Anti-graffiti coating

   - Self-cleaning nano-coating

   - Anti-fingerprint treatment

3. Safety Requirements:

   - Fire rating compliance (Class A/B per local codes)

   - Wind load calculations for facade applications

   - Structural loading considerations

Installation Best Practices

- Handling Protocols: Protective film maintenance during installation

- Joining Techniques: Specialized sealants for seamless appearance

- Cleaning Procedures: Non-abrasive cleaning methods

- Alignment Precision: Laser-guided installation for optimal reflection

        Sustainability and Environmental Performance

Energy Efficiency Benefits

- Solar Reflectance: Up to 0.85 solar reflectance index (SRI)

- Heat Island Reduction: Contributes to cooler urban environments

- Daylighting: Enhances natural light distribution

- LEED Contributions: Potential points in Energy, Materials, and Innovation categories

Environmental Attributes

- Recyclability: Aluminum components 100% recyclable

- Low Maintenance: Reduced cleaning frequency and chemical use

- Durability: Extended service life reduces replacement cycles

- Manufacturing: Low VOC coatings and sustainable processes

Technical Challenges and Solutions

Common Design Considerations

1. Distortion Management:

   - Precision manufacturing for optimal flatness

   - Advanced mounting systems to prevent warping

   - Regular quality control during production

2. Environmental Integration:

   - Bird-safe patterns and treatments

   - Glare reduction strategies

   - Thermal expansion accommodation

 3. Maintenance Accessibility:

   - Design for safe cleaning access

   - Protective coatings for reduced maintenance

   - Repair and replacement protocols

Performance Validation

- On-site Testing: Reflectivity verification after installation

- Long-term Monitoring: Performance tracking systems

- Warranty Requirements: Comprehensive coverage terms

Industry Standards and Certification

Global Compliance Framework

- ISO 9001: Quality management systems

- ISO 14001: Environmental management

- EN 13501-1: Fire performance classification

- ASTM Standards: Material performance testing

- Local Building Codes: Regional compliance requirements

Quality Assurance Protocols

1. Production Testing:

   - Batch-by-batch reflectivity verification

   - Coating adhesion testing

   - Flatness and dimensional accuracy

2. Project Certification:

   - Material submittal approval processes

   - Sample panel verification

   - Installation methodology reviews

Future Trends and Technological Advancements

Emerging Innovations

1. Smart Mirror Technology:

   - Integrated lighting and display capabilities

   - Interactive surface technologies

   - Energy-generating photovoltaic layers

2. Advanced Coatings:

   - Switchable opacity features

   - Thermal adaptive properties

   - Enhanced self-cleaning capabilities

3. Sustainable Developments:

   - Improved recyclability

   - Bio-based coating alternatives

   - Reduced manufacturing energy

Market Evolution

- Increased demand for customizable reflection patterns

- Growth in retrofit applications for existing buildings

- Expansion into transportation and infrastructure projects

        Cost Considerations and Value Proposition

 Economic Factors

- Initial Investment: Premium over standard ACPs (15-25% cost premium)

- Lifecycle Value: Reduced maintenance and replacement costs

- Insurance Benefits: Lower risk profile compared to glass

- Property Value: Enhanced aesthetic appeal and uniqueness

Return on Investment

- Energy savings through improved daylighting

- Reduced maintenance cycles and costs

- Extended service life compared to alternatives

- Marketing and branding value for commercial properties

Professional Resources and Industry Support

Specification Support

- Technical data sheets and performance documentation

- Sample programs for project evaluation

- CAD details and installation drawings

- Engineering support for complex applications

Industry Organizations

- Aluminum Association (AA)

- American Architectural Manufacturers Association (AAMA)

- Centre for Window and Cladding Technology (CWCT)

- Local architectural associations and groups

Conclusion: The Reflective Revolution in Architecture

Mirror aluminum composite panels represent a transformative material technology that successfully bridges aesthetic ambition with practical performance. By offering architects and designers the visual impact of mirrored surfaces combined with the durability, safety, and versatility of composite panel systems, these panels enable innovative solutions for both exterior and interior applications.

The continued advancement of coating technologies, manufacturing precision, and installation methodologies ensures that mirror ACPs will remain at the forefront of architectural material innovation. For projects seeking to create memorable visual statements while maintaining rigorous performance standards, mirror aluminum composite panels offer a sophisticated, reliable, and technologically advanced solution.

As sustainability considerations become increasingly important in architectural specification, the energy-saving potential and environmental benefits of mirror ACPs position them as both an aesthetic choice and a responsible building solution for the 21st century.
