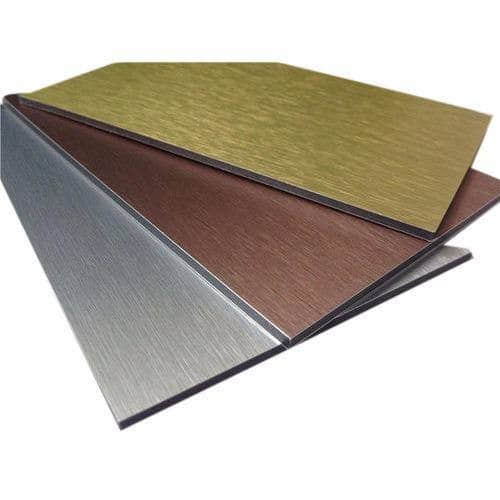

Brushed Aluminum Composite Panel

Introduction: The Timeless Appeal of Brushed Metal

Brushed aluminum composite panels (ACPs) offer a sophisticated, contemporary aesthetic that combines the visual warmth of brushed metal with the proven performance of composite cladding technology. Characterized by fine, parallel linear textures that diffuse light and minimize the appearance of fingerprints, brushed ACPs provide a premium, low-maintenance finish for high-end architectural projects. This article explores the manufacturing process, key properties, design applications, and specification guidelines for brushed aluminum composite panels.

What Are Brushed Aluminum Composite Panels?

Brushed ACPs are aluminum composite panels where the outer aluminum skins undergo a mechanical brushing process before coating. This creates a distinctive unidirectional satin finish that replicates the look of traditionally brushed solid aluminum sheets, but with the significant advantages of composite panel construction: lighter weight, enhanced flatness, better formability, and improved cost-effectiveness.

Manufacturing Process: How the Brushed Finish Is Achieved

The quality of the brushed finish depends on precise manufacturing controls:

1. Surface Preparation: The aluminum coil (typically 5005 or 3003 alloy) is chemically cleaned to remove oils and oxides.

2. Mechanical Brushing: Abrasive brushing wheels or belts are passed over the aluminum surface in a single direction. The grit size, brush pressure, and speed are carefully controlled to produce a consistent, uniform grain depth and pattern.

3 . Cleaning & Pre-Treatment: The brushed surface is thoroughly cleaned again to remove any metallic particles, followed by a chromate or non-chromate chemical conversion coating to enhance paint adhesion and corrosion resistance.

4. Coating Application: A transparent or lightly tinted protective coating is applied. Most commonly, this is a PVDF (Polyvinylidene Fluoride) resin-based coating, chosen for its exceptional durability, color retention, and resistance to weathering. For some interior applications, a durable polyester coating may be used.

5. Lamination: The finished brushed aluminum sheets are then laminated under heat and pressure to the core material (polyethylene PE, fire-retardant FR, or non-combustible mineral core) to form the final composite panel.

         Key Features and Technical Advantages

1. Aesthetic Superiority

Visual Depth: The brushed texture creates a soft, matte sheen that changes subtly with light and viewing angle, adding visual depth to facades.

Conceals Minor Imperfections: The linear grain effectively hides fine scratches, handling marks, and minor surface irregularities better than a mirror or plain mill finish.

Professional Elegance: Projects a premium, high-tech, and professional image suitable for corporate, institutional, and luxury developments.

2. Enhanced Durability and Performance

UV and Weather Resistance:** When top-coated with PVDF (70%+ resin content), brushed ACPs offer excellent resistance to fading, chalking, and corrosion. Warranties of 20-25 years on the finish are standard from reputable manufacturers.

Low Maintenance: The non-porous, coated surface resists dirt accumulation and is easy to clean. The texture minimizes the visibility of fingerprints and smudges.

Scratch Resistance: The coating provides a hard, protective layer over the brushed substrate.

3. Material Performance of ACPs

Lightweight & Rigid: Maintains the structural benefits of standard ACPs, allowing for larger panel sizes with less sub-structure.

Excellent Flatness: Resists oil-canning, ensuring a smooth, uniform appearance across the building envelope.

Formability: Can be bent, folded, and curved for creative architectural forms, though the bending direction relative to the grain must be considered for optimal visual consistency.

Popular Color and Finish Variations

Brushed ACPs are available in several enduring styles:

Brushed Silver / Natural Aluminum: The classic look, showcasing the authentic color of aluminum with a satin luster.

Brushed Anodized Look: Clear or colored tints (e.g., champagne, bronze, black, gold) applied over the brushing to mimic the appearance of brushed anodized aluminum, but with superior color consistency and coating durability.

Brushed Stainless Steel Look: Special coatings create the deep, lustrous gray appearance of brushed stainless steel at a fraction of the weight and cost.

Primary Architectural and Interior Applications

Exterior Cladding & Facades

Corporate Headquarters & Office Towers: Conveys modernity, stability, and quality.

Institutional Buildings (Universities, Museums, Government): Projects a dignified, permanent image.

Retail & Hospitality: Creates an upscale, inviting entrance and storefront.

Column Covers & Soffits: Used to add a refined textural element to building details.

Interior Design Applications

Feature Walls & Reception Areas: Adds a tactile, sophisticated backdrop.

Elevator Interiors & Cabins.

Signage & Wayfinding Elements.

Retail Fixtures and High-End Displays.

Specification Guidelines and Best Practices

1. Core Selection: Prioritize fire safety. For exterior facades, especially on multi-story buildings, specify fire-retardant (FR) or non-combustible (A2) cores in compliance with local building codes. PE cores are generally unsuitable for most exterior cladding.

2. Coating Specification: For all exterior applications, insist on a PVDF coating. Verify the resin content (≥70% is the industry standard for high performance). For interiors, durable polyester or higher-end PVDF are options.

3. Grain Direction: The brushed grain has a directional appearance. Clearly specify and coordinate the grain orientation (typically vertical or horizontal) on shop drawings to ensure visual consistency across the entire project. This is critical for adjacent panels and corner details.

4. Panel Handling and Fabrication: Protect the brushed finish with the factory-applied film during transport and handling. Fabricators should use clean tools and work surfaces to prevent scratching. Discuss bending radii and techniques with the supplier to avoid grain distortion.

5. Sourcing: Work with reputable ACP manufacturers and suppliers who can provide:

    *   Full technical data sheets and material safety data sheets (MSDS).

    *   Samples for color and texture approval.

    *   Valid fire test reports for the complete panel specification (core + finish).

    *   Details on warranty coverage for the finish and panel integrity.

Conclusion

Alucobond brushed aluminum composite panels represent the perfect synergy of timeless metallic aesthetics and modern composite material science. They offer architects and designers a durable, code-compliant, and visually striking material that elevates both exterior and interior spaces. By specifying high-quality PVDF-coated brushed ACPs with the appropriate fire-safe core and carefully detailing the installation, professionals can achieve a premium, long-lasting result that embodies sophistication and technical excellence.
