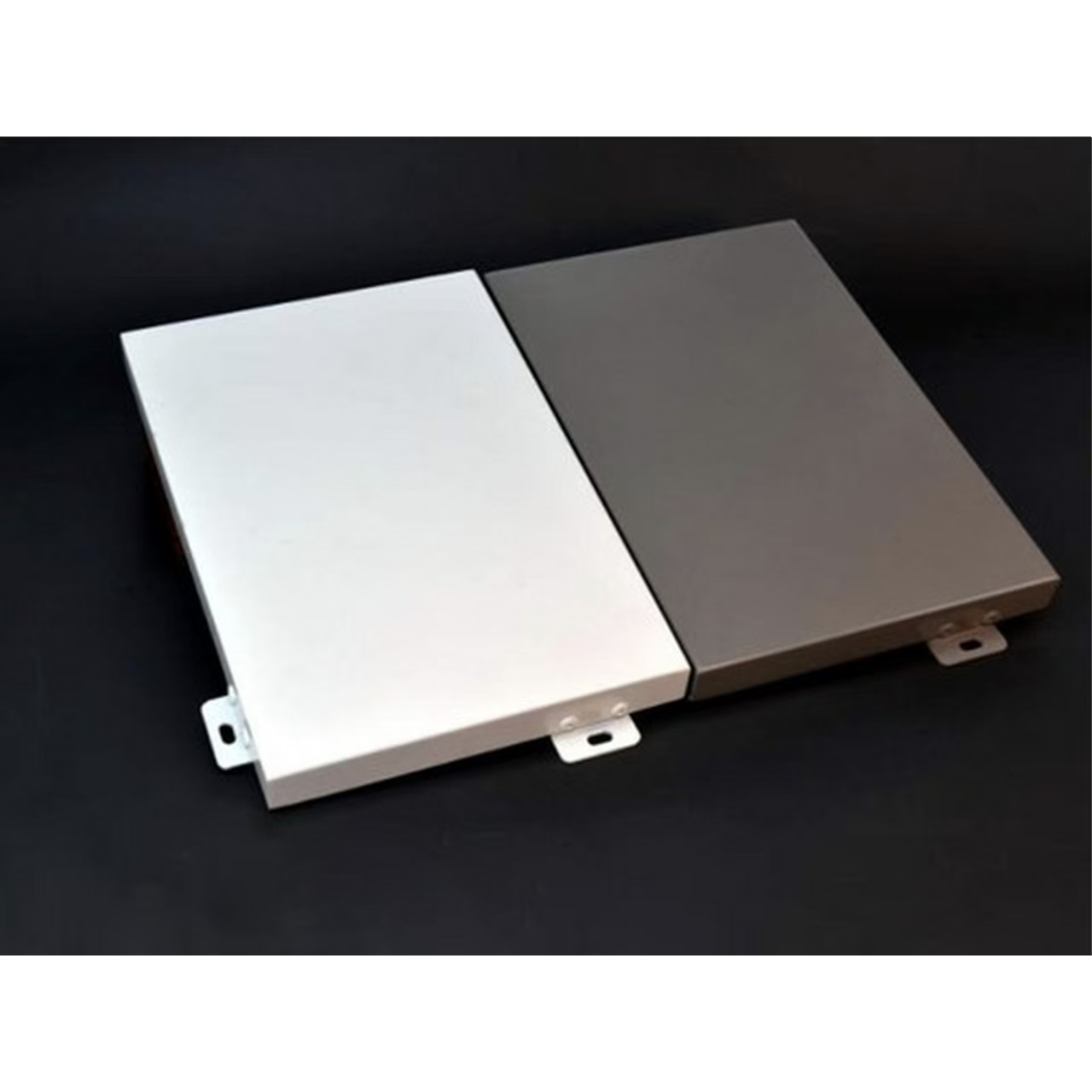

How to Bend Alucobond Without Cracking: A Step-by-Step Field Guide

You ordered the panels. They arrived on time. The color matches the sample. Everything looks right.

Then your fabricator starts bending. Cracks appear at the fold line. Panels get scrapped. The project falls behind schedule.

This happens more often than it should. But it does not have to happen to you.

Bending Alucobond is not complicated. It just requires discipline. Get the details right, and every panel folds cleanly. Miss one detail, and you waste material and time.

This guide walks you through the entire process. You will learn exactly what to do at each step. You will know what to check before you start. And you will understand how to avoid the mistakes that ruin panels.

What You Need Before You Start

Gather these items before bending any panel:

- Micrometer for measuring residual thickness

- Radius gauge for verifying bend radius

- Infrared thermometer for checking panel temperature

- Sharp router bits (carbide or diamond)

- Protective film (keep it on during bending)

- Clean work surface

- Heating equipment if shop temperature is below 65°F

Caption: Essential tools for crack-free Alucobond bending. Source: Industry fabrication standards.

Alt text: Micrometer, radius gauge, infrared thermometer, and router bits arranged on a workbench for aluminum composite panel fabrication.

Step 1: Receive and Inspect the Panels

Start with the right material.

Check the temper. Alucobond uses EN AW 5005A aluminum alloy with H22 or H42 temper. This temper balances strength and bendability. Harder tempers save money but crack more easily.

Ask your aluminum composite panel supplier for mill certificates. Verify the temper on every shipment. If the supplier cannot provide documentation, find another source.

Store panels flat. Keep them indoors. Let them acclimate to room temperature for at least 24 hours before bending.

Temperature matters. Cold panels crack. Aluminum becomes brittle below 50°F (10°C). The PVDF coating also hardens in cold weather.

Caption: Inspect incoming Alucobond panels for temper certification and proper storage conditions.

Alt text: Stack of Alucobond panels stored flat indoors with protective film intact, ready for fabrication.

Step 2: Set Up the Router

The V-groove determines everything. Get this wrong, and the panel will crack.

Use a sharp router bit. Dull bits create friction and heat. Heat softens the plastic core. The bit cuts deeper than intended. Replace bits regularly. Some shops replace them every 50,000 bends.

Set the correct routing depth. The industry standard is simple: leave 0.3mm of core material on top of the front aluminum skin. This is the minimum residual thickness.

The 0.3mm layer cushions the front skin during bending. It distributes stress evenly. Go below 0.3mm, and the skin lacks support. It cracks.

Residual Thickness Guide

Residual Thickness	Fold Result	Risk Level
0.5mm or more	Clean, strong fold	Very low risk
0.3mm to 0.5mm	Clean, acceptable fold	Low risk
0.2mm to 0.3mm	Marginal	Moderate risk
Below 0.2mm	Cracks likely	High risk

Caption: Residual thickness determines fold quality. Never go below 0.3mm. Source: Industry fabrication standards.

Alt text: Cross-section diagram showing residual plastic layer thickness at the bottom of a V-groove in an Alucobond panel.

Route the groove at 90 degrees for a 90-degree fold. Use a consistent depth across every panel. Variations as small as 0.1mm change the outcome.

Measure residual thickness with a micrometer. Check every batch. Reject panels below 0.3mm.

Caption: CNC router setup for consistent V-groove depth on Alucobond panels.

Alt text: CNC router cutting a V-groove into the back of an aluminum composite panel with precision depth control.

Step 3: Warm the Panel

Cold bending is the number one cause of cracking.

Aluminum loses ductility below 50°F. The coating becomes rigid. The material cannot stretch far enough. It cracks.

The safe zone for bending is above 65°F (18°C). For best results, heat the bend area to 120°F to 180°F (50°C to 80°C). At this temperature, aluminum becomes more ductile. The coating stays flexible.

Use heat guns or strip heaters. Warm the panel evenly. Do not overheat. The maximum continuous operating temperature is 80°C (176°F).

If your shop is cold, store panels at room temperature for 24 hours before bending. Schedule bending for the warmest part of the day. Use portable heaters near the folding station.

Caption: Heating the bend area to 120°F-180°F prevents cold-bending cracks.

Alt text: Worker applying heat to an Alucobond panel bend line using a heat gun before folding.

Step 4: Set the Bend Radius

Tight corners look sharp. They also crack.

The minimum bend radius for 4mm Alucobond PLUS without routing the back skin is 4 inches (about 100mm). With routing, the recommended minimum inside radius is 60mm.

A larger radius means a gentler bend. The aluminum stretches within its elastic limit. No cracks.

A tighter radius exceeds the elastic limit. The skin tears.

Use a radius gauge to verify your tooling. Test a scrap piece before bending production panels.

Bend Radius Guidelines

Panel Thickness	Minimum Bend Radius (Routed)	Minimum Bend Radius (Unrouted)
3mm	45mm	15 × thickness
4mm	60mm	15 × thickness (approx. 100mm)

Caption: Minimum bend radius requirements for Alucobond panels. Source: Alucobond technical specifications.

Alt text: Chart showing minimum bend radius requirements for 3mm and 4mm Alucobond panels with routed and unrouted bends.

Step 5: Bend the Panel

Now the actual bending. This is where discipline matters most.

Use a single, smooth motion. Do not bend, check, and bend again. Re-bending is a death sentence for Alucobond edges.

Why? The first bend work-hardens the aluminum. The metal becomes harder and less ductile. The second bend exceeds the reduced elastic limit. Micro-cracks form.

Ductility After Multiple Bends

Number of Bends	Ductility Remaining	Crack Risk
0	100%	None
1	~70%	Low
2	~40%	High
3+	~20%	Very high

Caption: Each bend reduces ductility. Multiple bends guarantee cracking. Source: Metal fatigue research.

Alt text: Bar chart showing decreasing ductility and increasing crack risk with each additional bend.

Keep the protective film on the panel during bending. It prevents surface damage.

Apply uniform pressure across the entire bend length. Avoid over-bending or under-bending.

Bend perpendicular to the rolling direction if possible. Aluminum has a grain direction from the rolling mill. Bending parallel to the grain reduces ductility. Cracks form more easily.

If the panel does not fold cleanly on the first attempt, scrap it. Order a new one. The cost of a new panel is small compared to the cost of a failed facade.

Caption: Proper press brake setup for single-pass Alucobond bending.

Alt text: Press brake folding an Alucobond panel with uniform pressure and proper die alignment.

Step 6: Inspect the Fold

Check every folded panel before it leaves the shop.

Look for hairline cracks along the bend line. Use magnification if needed. Some cracks are invisible to the naked eye.

Measure the bend radius. Verify it meets specifications.

Check the fold angle. It should be clean and consistent.

If you find cracks, do not try to repair them. The panel is compromised. Replace it.

Caption: Inspecting folded Alucobond edges for cracks using magnification.

Alt text: Quality inspector examining a folded Alucobond edge with a magnifying glass for hairline cracks.

The 7 Root Causes of Cracking (And How to Avoid Them)

Root Cause	Why It Happens	How to Prevent It
Bending too tight	Sharp corners look good but crack	Use minimum 60mm radius for 4mm
Wrong grain direction	Bending parallel to grain reduces ductility	Bend perpendicular to rolling direction
Inconsistent groove depth	Worn bits or poor calibration	Measure residual thickness every batch
Cold workshop	Aluminum becomes brittle below 50°F	Warm panels to 65°F+ before bending
Dull tooling	Worn tools create pressure points	Replace bits regularly
Re-bending	Work hardening reduces ductility	Scrap and replace, never re-bend
Wrong tooling	Steel tooling pinches aluminum	Use tooling designed for aluminum

Caption: Seven root causes of Alucobond bending cracks and their solutions. Source: Industry fabrication experience.

Alt text: Table listing seven common causes of cracking during Alucobond bending with prevention methods for each.

What to Ask Your Supplier

When you work with an aluminum composite panel supplier, ask these questions:

1. What temper do you supply? The answer should be H22 or H42.

2. Can you provide mill certificates? A reliable supplier will provide them.

3. What is your minimum bend radius recommendation? For 4mm, it should be 60mm minimum.

4. Do you have a no-re-bending policy? The answer should be yes.

5. What is your warranty coverage? Proper bending preserves the warranty.

Choose a wholesale supplier of ACM panels that understands these requirements. A knowledgeable distributor of Alucobond panels will guide you through the specifications. An authorized dealer Alucobond will provide the correct material and technical support.

For large projects, work with an OEM manufacturer ACM panels or a manufacturer of aluminum composite panels that has in-house fabrication capability. They understand the material better than anyone.

If you buy factory direct aluminum composite panels, you get better pricing. But make sure the factory has quality control systems in place. Ask for wholesale price aluminum composite panels from suppliers who can back up their low prices with consistent quality.

The Bottom Line

Bending Alucobond without cracking is not complicated. It just requires attention to detail.

Control the six critical variables:

1. Material temper (H22/H42)

2. Residual thickness (0.3mm minimum)

3. Bend radius (60mm minimum for 4mm)

4. Temperature (65°F+ for bending)

5. Routing depth (consistent, precise)

6. Bending count (once, never twice)

Miss any one of these, and you risk cracking.

The best aluminum composite panel supplier will help you get these details right. The best fabricators will follow them religiously. And your panels will fold cleanly, every time.

Do not let a cracked fold ruin your project. Follow this guide. Test your process. Inspect every panel. And choose suppliers who understand what it takes to bend Alucobond the right way.
