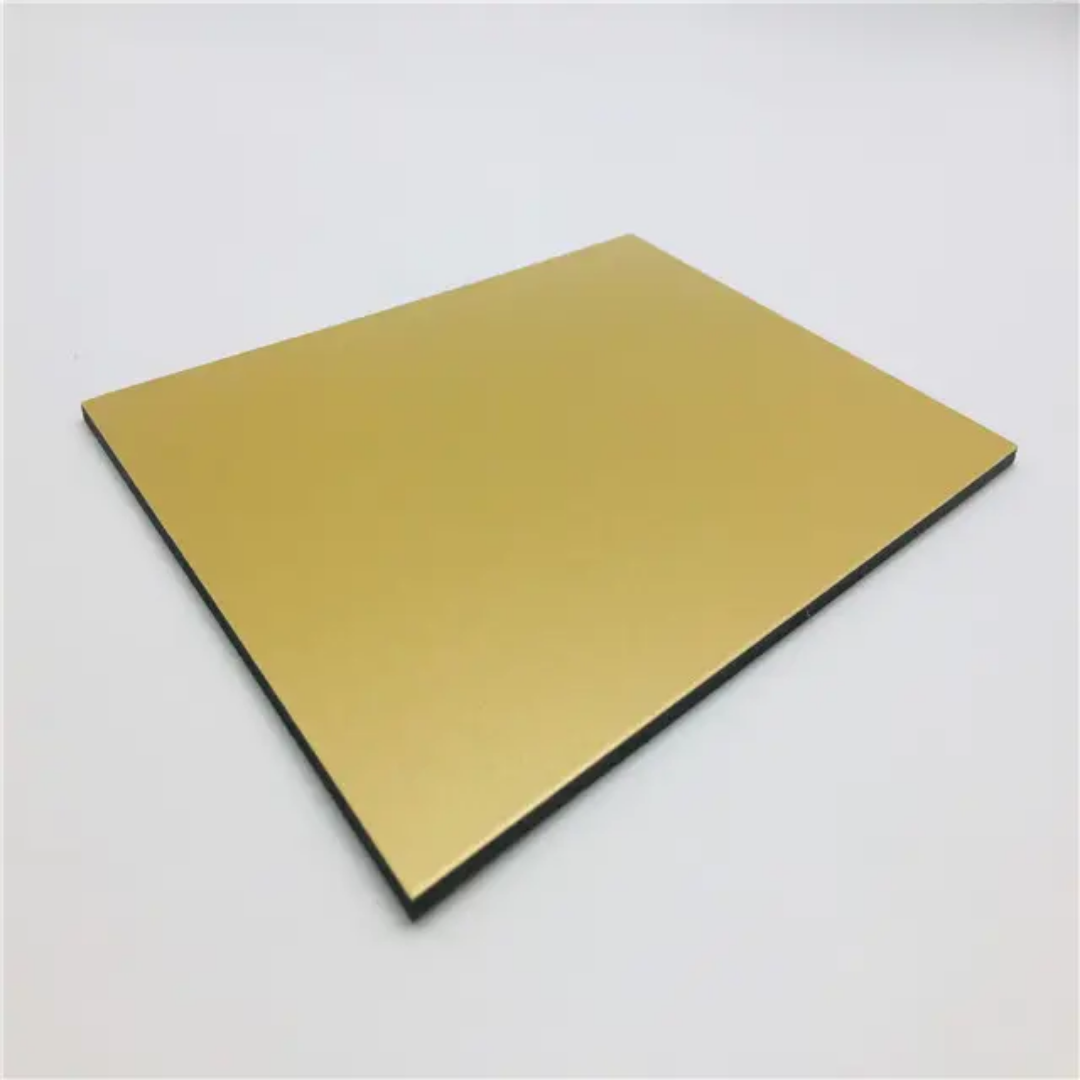

Economies of Scale in ACP: Why Ultra-Cheap Coils Always Lead to "Spring Back" and Wavy Edges
You find a supplier offering aluminum composite panels at a price 30% below your current cost. The sample looks acceptable. The factory claims "same quality, better price." You place a large order to maximize your margin.
Then the fabrication begins.
The panels spring back when you try to bend them. The cut edges are wavy, not straight. Your fabrication time doubles. Your scrap rate triples. Your "savings" disappear into rework labor and rejected panels.
What happened?
You just discovered the hidden cost of ultra-cheap coils. The economies of scale that legitimate manufacturers use to lower prices become, in the hands of substandard producers, a recipe for predictable defects: spring back and wavy edges.
This article explains the engineering behind these defects, why cheap coils guarantee them, and how to specify your way to consistent, flat, bendable panels.
Understanding Economies of Scale in ACP Production
Legitimate manufacturers achieve lower prices through genuine economies of scale:
Source of Scale | How It Lowers Cost | Does It Affect Quality? |
Larger coil purchases (500+ tons) | Lower per-ton coil price | No |
Continuous lamination lines | Higher throughput, lower labor per panel | No (improves consistency) |
Automated quality control | Less manual inspection cost | No (improves consistency) |
Direct container shipping | Lower freight per panel | No |
These are legitimate savings. They do not compromise quality.
But substandard manufacturers achieve "ultra-cheap" prices through a different method: using rejected or off-specification aluminum coils.
False Economy | How It Lowers Cost | Quality Consequence |
H18 temper coil (instead of H14) | $200–400 cheaper per ton | Brittle, spring back, cracking |
Thin-gauge coil (0.15mm instead of 0.21mm) | Less aluminum per panel | Wavy edges, oil-canning |
Reject coil from other industries | 40–60% below prime coil price | Inconsistent mechanical properties |
No coil pre-treatment | Skipped the chemical wash step | Poor adhesion, blistering |
These are not economies of scale. They are quality sacrifices dressed up as cost savings.
Defect #1: Spring Back
What Is Spring Back?
Spring back is the tendency of a bent panel to partially return to its original flat shape after the bending force is removed.
When you bend a panel to 90°, it may spring back to 95° or 100°. You then need to over-bend (e.g., to 85°) to achieve the final 90° angle.
A small amount of spring back is normal. Excessive springback is a defect that makes consistent fabrication impossible.
Why Spring Back Happens
Spring back is determined by the ratio of the aluminum's yield strength to its elastic modulus.
Material | Yield Strength (MPa) | Elastic Modulus (GPa) | Spring Back Tendency |
3003 H14 (proper) | 145 | 69 | Low to moderate |
3003 H16 (marginal) | 170 | 69 | Moderate |
3003 H18 (ultra-cheap) | 200+ | 69 | High |
1100 H14 (soft) | 69 | 69 | High |
The engineering reality: As aluminum gets harder (higher temper), its yield strength increases, but its elastic modulus stays the same. The panel becomes more "springy" relative to its strength. Spring back increases.
Why Ultra-Cheap Coils Guarantee Spring Back
Substandard suppliers buy H18 temper coil because it is cheaper. H18 is fully hard aluminum, typically used for rigid flat applications like highway signs that will never be bent.
When you try to bend the H18 coil in an ACP panel:
Problem | Result |
High spring back (5–10° vs. 1–2° for H14) | Inconsistent bend angles |
Requires over-bending | Second operation, slower fabrication |
Spring back varies across the coil | Different panels behave differently |
Crack propagation | H18 is less ductile; micro-cracks form |
The guarantee: Any ACP manufacturer offering prices significantly below market is almost certainly using H18 or mixed-temper coil. Spring back is guaranteed.
How to Detect Spring Back Before Buying
The 90° Bend Test:
1. Cut a 50mm x 200mm strip from a sample panel
2. Bend it to 90° using a press brake with a V-die opening 8x panel thickness
3. Release the bend and measure the actual angle
Measured Angle | Spring Back | Verdict |
88–92° | 0–2° | Excellent (H14) |
85–87° | 3–5° | Acceptable (marginal) |
80–84° | 6–10° | Poor (likely H16) |
Below 80° | Over 10° | Reject (H18) |
Defect #2: Wavy Edges
What Are Wavy Edges?
Wavy edges refer to a non-linear, undulating cut edge on an ACP panel. When you look along the edge of the panel, it appears to wave or ripple rather than form a straight line.
Why Wavy Edges Happen
The edge straightness of a fabricated ACP panel depends on the residual stress distribution within the aluminum skins.
Coil Condition | Residual Stress | Edge Cut Result |
Properly annealed (H14) | Low and uniform | Straight edge |
Improperly annealed | Uneven stress across the width | Wavy edge |
Work-hardened (H18) | High surface stress | Wavy edge + burrs |
Mixed temper across the width | Stress varies left to right | Edge waves on one side only |
The Rolling and Annealing Process
Proper H14 temper is achieved by:
1. Rolling aluminum to the desired thickness (work hardening occurs)
2. Annealing (heat treating) to reduce hardness to H14 specification
3. Cooling uniformly across the entire coil width
Ultra-cheap coils skip or shortcut the annealing step:
Shortcut | Result |
No annealing (shipping as H18) | Maximum residual stress |
Partial annealing (reducing but not eliminating stress) | Uneven stress distribution |
Uneven cooling after annealing | Stress varies across the width |
Mixed coils (H14 edges, H18 center) | Stress varies unpredictably |
The guarantee: When you cut a panel made from a coil with uneven residual stress, the internal forces release unevenly along the cut line. The edge waves. The panel cannot be straightened.
How to Detect Wavy Edges Before Buying
The Straightedge Test:
1. Cut a full 4' x 8' panel (or request a pre-cut sample)
2. Place a 2-meter straightedge along the cut edge
3. Measure the maximum gap between the straightedge and the panel edge
Maximum Gap | Verdict |
Less than 1mm per meter | Excellent |
1–2mm per meter | Acceptable for most applications |
2–3mm per meter | Marginal (requires trimming) |
Over 3mm per meter | Reject |
The Diagonal Flatness Test:
1. Place the panel on a known flat surface (e.g., granite table or certified flat floor)
2. Measure the gap at each corner when the opposite corners are held flat
Gap at Free Corner | Verdict |
Less than 2mm | Acceptable |
2–5mm | Marginal (may oil-can on installation) |
Over 5mm | Reject |
The Economic Calculation: Cheap Coils Are Not Cheaper
Let us run the numbers on a real-world fabrication project.
Assumptions
- Project: 1,000 square meters of bent ACP panels
- Premium panels: $22 per square meter
- Ultra-cheap panels: $15 per square meter ($7,000 "savings")
Fabrication Comparison
Factor | Premium H14 Coil | Ultra-Cheap H18 Coil |
Panel cost (1,000 sqm) | $22,000 | $15,000 |
Fabrication time per panel (standard bend) | 5 minutes | 8 minutes (+60%) |
Spring back adjustment passes | None | 2 passes per bend |
Scrap rate (rejects) | 2% | 12% |
Edge trimming required | None | 100% of panels |
Rework labor cost (100 panels @ $50/hr) | $0 | $2,500 |
Scrap material cost (extra 10% @ $15) | $0 | $1,500 |
Extended fabrication time (1,000 panels @ $50/hr shop rate) | $4,167 | $6,667 |
Total Project Cost
Cost Element | Premium H14 | Ultra-Cheap H18 |
Material | $22,000 | $15,000 |
Fabrication labor | $4,167 | $6,667 |
Rework labor | $0 | $2,500 |
Scrap replacement | $0 | $1,500 |
Total | $26,167 | $25,667 |
The "savings" on cheap panels? $500 on a $26,000 project. Less than 2%.
And this calculation excludes:
- Project delays (cost of extended fabrication time)
- Customer dissatisfaction (wavy edges on visible facades)
- Future lost business (reputation damage)
The Procurement Professional's Specification
To avoid spring back and wavy edges, include these requirements in every purchase order:
Mandatory Specifications
"The aluminum skins shall be manufactured from 3003 H14 or 3105 H14 alloy temper. H16, H18, or unspecified temper shall not be accepted. Mill certificates from the original aluminum coil manufacturer confirming H14 temper shall be provided for each coil used in production."
"The panel shall pass a 90° bend test with a V-die opening 8x panel thickness. Spring back shall not exceed 3° (final angle between 87° and 93°)."
"Cut edges shall be straight within 1mm per meter when measured with a 2-meter straightedge."
Recommended Testing Protocol
Test | Frequency | Acceptance Criterion |
90° bend test | 1 per coil | 87–93° final angle |
Straightedge test | 1 per 100 panels | <1mm gap per meter |
Diagonal flatness test | 1 per 100 panels | <2mm gap at the free corner |
Real-World Case Study: The Wavy Edge Disaster
The Buyer: A signage manufacturer sourcing 500 panels for a retail store rollout.
The Deal: Ultra-cheap panels at $12/sqm (market average was $18/sqm).
The Problem: Every cut edge was wavy. Panels could not be butted together without visible gaps. The fabrication shop spent 8 hours trimming edges—time that was not quoted in the original job.
The Cost Breakdown:
Cost | Amount |
"Savings" on panels (500 panels × $6) | $3,000 |
Extra trimming labor (8 hours × $85 shop rate) | $680 |
Scrap from over-trimming (15 panels) | $180 |
Customer discount for wavy edges on visible panels | $2,000 |
Net loss vs. buying a premium | $1,860 |
The buyer saved $3,000 on materials and lost $4,860 in labor, scrap, and customer concessions. Net loss: $1,860.
Conclusion: Understand the Engineering or Pay the Price
Spring back and wavy edges are not random defects. They are predictable consequences of using ultra-cheap aluminum coils. H18 temper guarantees excessive spring back. Uneven residual stress guarantees wavy edges.
Legitimate economies of scale lower prices without compromising quality. False economies sacrifice the very properties that make ACP fabricable: consistent temper, uniform stress distribution, and predictable bend behavior.
Before your next purchase, ask the supplier one question: "What is the exact temper of your aluminum coil, and can you provide the mill certificate?"
If they hesitate, or if the answer is H18, keep shopping. The "savings" are not worth the spring back and wavy edges.
