How Inconsistent PVDF Coating Thickness Ruins Aluminum Composite Panel Longevity

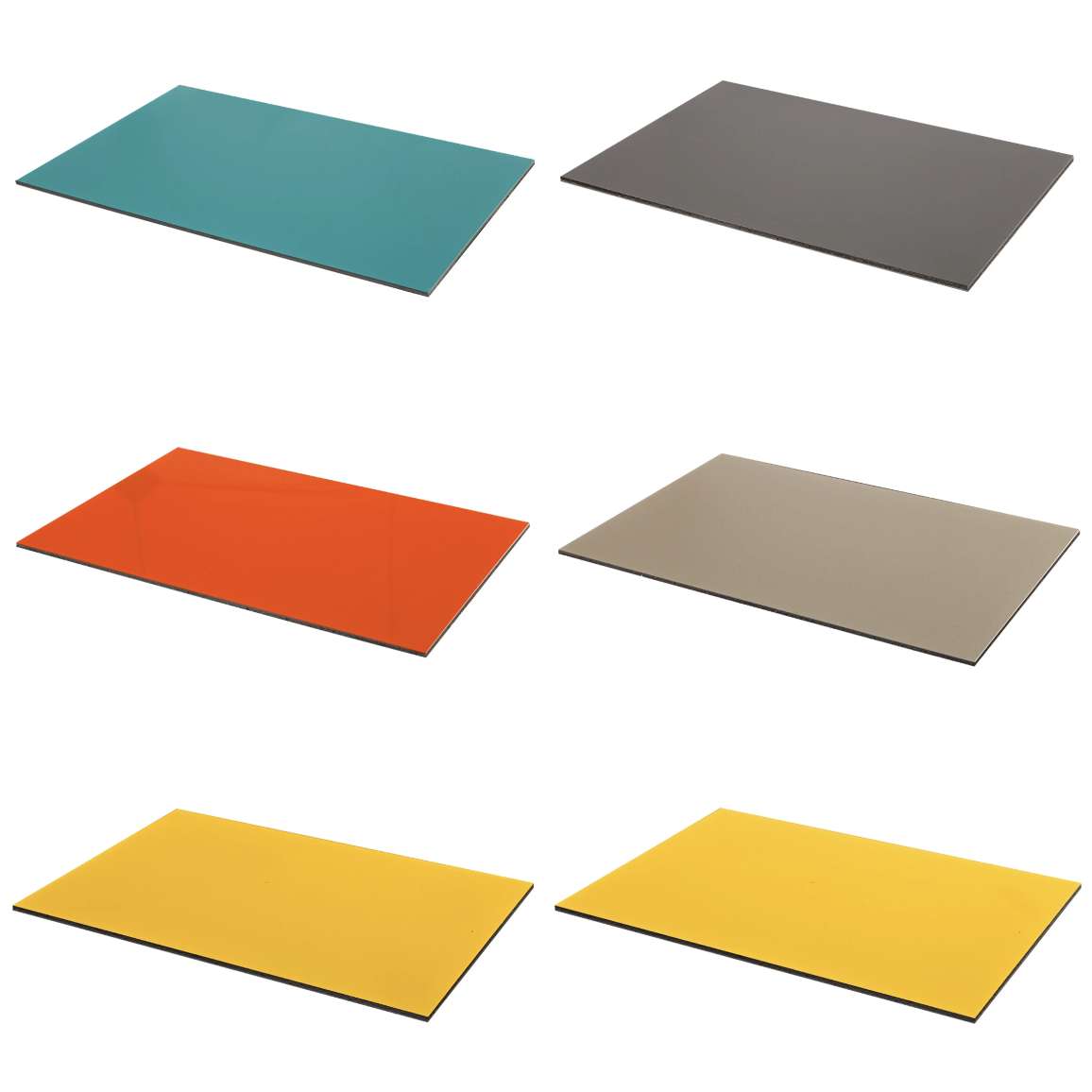

The coating is the first line of defense for any aluminum composite panel (ACP) installed outdoors. Among coating systems, PVDF (polyvinylidene fluoride) is the gold standard for architectural facades, offering exceptional UV resistance, chemical durability, and color retention. Leading PVDF formulations such as Kynar 500 and Hylar 5000 contain over 70% PVDF resin, providing the robust protection required for AAMA 2605 compliance.

However, even the highest-quality PVDF coating will fail prematurely if applied at an inconsistent thickness. For procurement professionals, understanding the relationship between coating thickness and longevity is essential for specifying panels that will perform for 20+ years rather than fading, chalking, or corroding within a decade.

This guide explains how inconsistent PVDF coating thickness compromises ACP durability, what thickness standards apply, and how buyers can verify that delivered panels meet specifications.

What Is PVDF Coating and Why Does Thickness Matter?

PVDF is a fluoropolymer coating known for its exceptional resistance to UV radiation, chemical attack, and weathering. Unlike polyester coatings that degrade relatively quickly, properly formulated PVDF (with ≥70% PVDF resin) provides:

- UV resistance: Prevents chalking, fading, and gloss loss

- Chemical resistance: Withstands acid rain, airborne pollutants, and cleaning agents

- Corrosion protection: Creates a barrier against moisture and salt

The coating thickness determines how effectively these protective functions operate. A coating that is too thin cannot provide adequate protection. An excessively thick coating may crack during fabrication or delaminate over time. Consistent, specification-compliant thickness across the entire panel—and across the entire shipment—is essential for uniform performance.

Industry Standards for PVDF Coating Thickness

Reputable manufacturers follow established standards that specify minimum coating thickness for exterior architectural applications.

AAMA 2605 (Premium Exterior – 20+ Years)

This is the highest standard for architectural coatings, required for high-rise buildings and harsh environments. Under AAMA 2605, two-coat systems require:

Coating Component	Minimum Dry Film Thickness (AAMA 2605)
Primer	0.3 mils (approx. 7–8 µm) typical
Topcoat	0.7 mils (approx. 18 µm) minimum
Total Two-Coat System	1.0 mil (approx. 25 µm) minimum

For three-coat systems (primer + color coat + clear coat), the clear coat adds approximately 0.5 mils (12–13 µm), bringing the total to approximately 1.5 mils (38 µm).

GB/T 17748-2016 (Chinese National Standard)

The Chinese standard for aluminum composite panels specifies the following minimum coating thickness for exterior (curtain wall) panels:

Coating System	Average Thickness	Minimum Individual Reading
Two-coat	≥25 μm	≥23 μm
Three-coat	≥32 μm	≥30 μm

Industry Best Practice

A PVDF coating thickness of at least 25 μm (1.0 mil) is widely recognized as the minimum to achieve 15-20 year exterior durability, provided the coating contains ≥70% PVDF resin and uses inorganic pigments. For coastal or high-UV environments, three-coat systems (≥32 μm) are strongly recommended.

How Inconsistent Coating Thickness Ruins Longevity

Inconsistent coating thickness—whether variation across a single panel, between panels in the same batch, or between different batches—creates weak points where premature failure begins.

Thin Coating Areas: Accelerated Failure Zones

Where the coating is thinner than specified, protection is compromised.

Thin Coating Consequence	Mechanism	Timeline
Premature fading	Thin coating allows more UV penetration to the substrate, accelerating pigment degradation	3–7 years vs. 15–20 expected
Chalking	PVDF resin degrades faster when insufficient coating thickness allows deeper UV penetration	Visible within 3–5 years
Corrosion initiation	Thin spots allow moisture and salt to reach the aluminum substrate	Pitting begins within 2–5 years in coastal environments
Poor hiding	Substrate shows through the thin coating, creating visible color variation	Immediate

Research on PVDF-coated steel plates demonstrates a direct correlation: thinner coating systems (25 μm total) showed significant edge corrosion after 2,000 hours of salt spray testing, while thicker systems (45 μm total) remained pristine. For aluminum composite panels, which already face galvanic corrosion risks in coastal environments, thin coating areas are the most vulnerable points on the facade.

Thick Coating Areas: Fabrication Risks

While a thicker coating generally provides better corrosion protection, excessive thickness introduces different problems:

- Cracking during bending: When panels are folded or shaped during fabrication, thick, brittle coatings may crack, exposing aluminum.

- Poor adhesion: Very thick coatings may have internal stresses that reduce bond strength to the substrate.

- Orange peel texture: Excessive coating thickness can create an uneven, textured appearance.

- Delamination risk: Thick coatings are more susceptible to cohesive failure under thermal cycling.

The Cumulative Effect of Inconsistency

When coating thickness varies across a facade, different areas of the building age at different rates. South-facing elevations exposed to intense UV may show fading within 5 years, while north-facing elevations remain acceptable. Panels near the coast corrode at the edges where the coating is thinnest. The result is a patchy, unprofessional appearance and premature need for repainting or replacement.

Causes of Inconsistent PVDF Coating Thickness

Understanding why thickness variation occurs helps procurement professionals identify high-risk suppliers.

1. Poor Line Speed Control

In continuous coil coating, line speed directly affects coating thickness. If speed increases, the coating applicator has less time to deposit material, resulting in a thinner coating. Inconsistent speed control creates thickness variation across the coil—and across panels cut from different sections of the same coil.

2. Improper Roller or Spray Settings

For roller-coated panels, uneven pressure between application rollers creates thickness variation across the width of the coil. Edges may receive less coating than the center, or vice versa. For spray-coated panels, incorrect gun distance, air pressure, or fluid flow produces uneven deposition.

3. Inadequate Quality Control

Manufacturers without real-time thickness monitoring may produce large quantities of off-specification coating before discovering the problem. Premium manufacturers use inline non-contact sensors (e.g., SpecMetrix systems) that measure coating thickness continuously, allowing immediate adjustments. Low-grade manufacturers rely on intermittent offline sampling or no measurement at all.

4. No Calibration or Maintenance

Coating application equipment requires regular calibration and maintenance. Worn rollers, clogged nozzles, or drifting process parameters introduce thickness variation over time. Suppliers without documented maintenance programs are likely to produce inconsistent coating thickness.

How to Verify PVDF Coating Thickness

Procurement professionals and quality inspectors can use the following methods to verify that delivered panels meet the specifications.

Handheld Coating Thickness Gauges (Non-Destructive)

Best for: Field inspection upon delivery

How it works: Magnetic induction or eddy current gauges measure the distance between the probe and the aluminum substrate through the non-magnetic coating.

Specifications:

- Resolution: 0.1 μm (0.01 mils) minimum

- Accuracy: ±1–3% of reading

- Calibration: Must be verified on known standards before use

Procedure:

1. Zero and calibrate the gauge on uncoated aluminum (or use certified shims).

2. Measure at a minimum of 10 locations per panel (four corners, four edges, center).

3. Record each measurement and calculate the average, minimum, and maximum.

Acceptance criteria (per GB/T 17748 ):

Coating System	Average Thickness	Minimum Single Reading
Two-coat	≥25 μm	≥23 μm \|
Three-coat	≥32 μm	≥30 μm \|

Laboratory Cross-Section Analysis (Destructive)

Best for: Dispute resolution or critical projects

How it works: A small sample is cut, embedded in resin, and polished. The cross-section is examined under a microscope with a calibrated scale to measure individual coating layers (primer, color coat, clear coat) and total thickness.

Advantage: This method distinguishes between primer and topcoat layers, verifying that each meets minimum requirements. It also reveals hidden defects like voids or poor intercoat adhesion.

Inline Monitoring (Manufacturer Capability)

During supplier qualification, ask whether the manufacturer uses real-time non-contact coating thickness monitoring (e.g., SpecMetrix or similar optical systems) on their coating line. This capability strongly correlates with consistent coating quality.

What Coating Thickness Does NOT Tell You

Coating thickness is necessary but not sufficient for long-term performance. Procurement professionals must also verify:

Additional Factor	Why It Matters	How to Verify
PVDF resin content	AAMA 2605 requires ≥70% PVDF resin. Lower resin content fails prematurely.	Request a certificate of analysis from the coating supplier (e.g., PPG, AkzoNobel, Beckers)
Pigment type	Inorganic pigments (e.g., ceramic-coated micaceous iron oxide) resist UV; organic pigments fade.	Specification in the coating certificate
Primer quality	High-quality primer (e.g., polyurethane) provides adhesion and corrosion resistance.	AAMA 2605 requires an approved primer system
Cure completeness	An under-cured coating may have poor hardness and chemical resistance.	MEK rub test (ASTM D5402)
Adhesion	The coating must bond to the aluminum substrate.	Cross-hatch tape test (ASTM D3359)

Incorporating Thickness Requirements into Procurement

Before Ordering: Contractual Specifications

Write into your purchase order:

"PVDF coating system shall comply with AAMA 2605 (or GB/T 17748 for projects under Chinese jurisdiction). Coating thickness: Two-coat system minimum 25 μm average, 23 μm minimum single reading. Three-coat system minimum 32 μm average, 30 μm minimum single reading. Supplier shall provide batch-specific coating thickness reports from calibrated instruments."

Pre-Production: Sample Approval

Request 5–10 pre-production panels. Measure coating thickness at 10+ locations per panel. Do not approve production if the average thickness is below the specification or if the panel-to-panel variation exceeds ±3 μm.

Pre-Shipment: Third-Party Inspection

Engage a third-party inspector to randomly select panels (minimum 10% of shipment) and measure coating thickness using a calibrated gauge. Any panel with average thickness below specification or any reading below the minimum acceptable should trigger rejection of the entire lot.

Upon Delivery: Incoming Inspection

Perform thickness measurements on randomly selected panels from each pallet before signing the delivery receipt. If more than 5% of measured panels fail to meet minimum thickness requirements, reject the entire shipment.

Red Flags That Indicate Coating Thickness Risk

Red Flag	Why It Matters
The supplier cannot specify coating thickness in writing	No defined standard; thickness likely uncontrolled
No AAMA standard referenced	May be using low-cost, low-performance coatings
"Thickness 20 ± 5 μm" as a claim	20 μm average is below the AAMA 2605 minimum (25 μm). Reject.
Cannot provide batch-specific thickness reports	No traceability; may have never been measured
Price is significantly below the competitors	Cost savings often come from a thinner coating
No coating thickness gauge visible during factory audit	Inability to measure means inability to control

Conclusion

Inconsistent PVDF coating thickness is not a minor cosmetic issue—it directly determines how many years an aluminum composite panel facade will remain attractive and protected. Thin areas fail prematurely through fading, chalking, and corrosion. Thick areas risk cracking during fabrication. Variation across the facade creates uneven aging and a patchy appearance.

For procurement professionals, the message is clear: specify coating thickness in your purchase order, require AAMA 2605 (or GB/T 17748) compliance, verify batch-specific test reports, conduct third-party pre-shipment inspection, and perform incoming thickness verification before accepting delivery.

The cost of a few minutes of thickness measurement per panel is negligible compared to the cost of recoating or replacing a facade that fails 10 years early because the coating was thinner than specified.
