How to Protect Pre-Bent ACP Corners from "Step Over" Damage During Transport

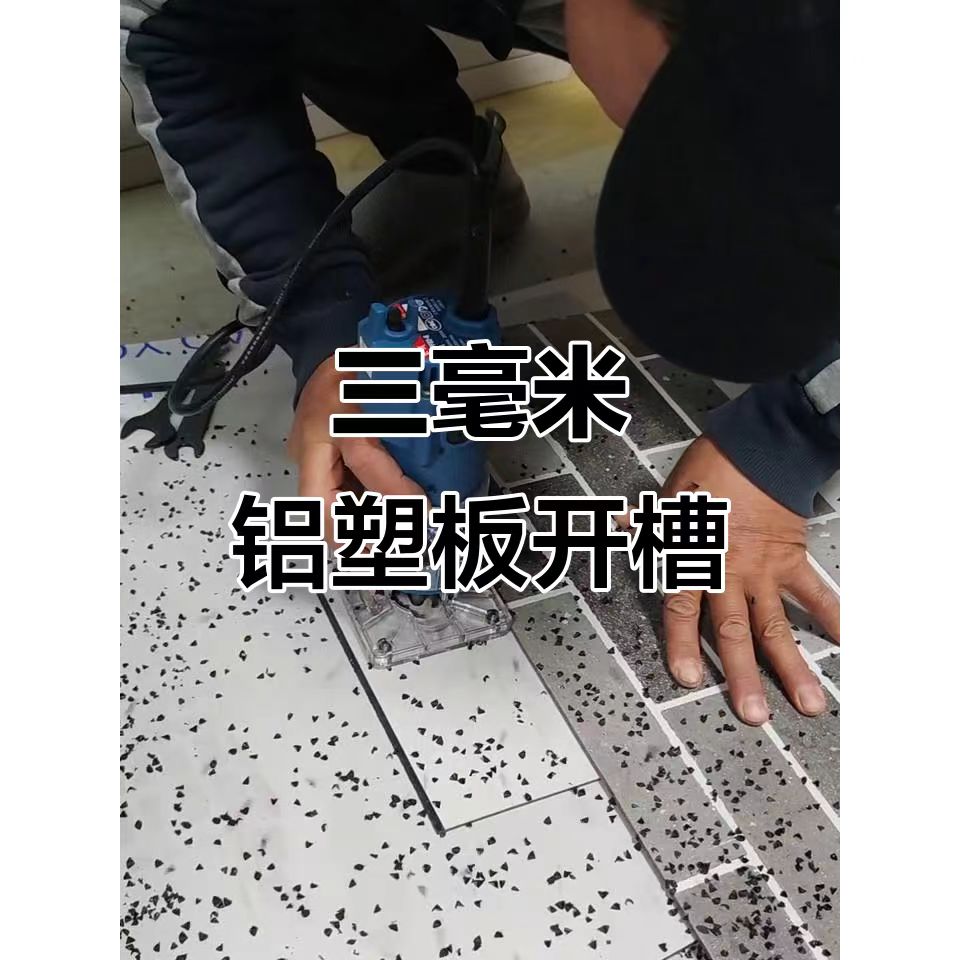

You have invested in precision-fabricated aluminum composite panels with factory-formed corners. The V-grooving is exact. The folds are crisp. The cassettes are ready for direct installation. Then the panels arrive on site—and the corners that left the factory at perfect 90 degrees are now rounded, cracked, or crushed.

This is "step over" damage—the deformation that occurs when pre-bent panel corners are stacked, compressed, or impacted during transport. Unlike flat panels, which can tolerate some stacking pressure, pre-bent corners concentrate stress at the fold line. When that stress exceeds the aluminum's yield strength, the corner deforms permanently. The panel is rejected. The schedule slips. The cost escalates.

This guide explains how step-over damage occurs and provides procurement-grade specifications for packaging, loading, and handling that protect pre-bent corners from factory to jobsite.

1. What Is "Step Over" Damage?

Step over damage refers to the localized deformation, cracking, or crushing of pre-bent panel corners caused by compression from adjacent panels or impact during loading and unloading. The term "step over" describes the way stacked panels can shift during transit, causing the corner of one panel to press against the face or edge of another.

The vulnerability is specific to pre-fabricated cassettes—panels that have been V-grooved, folded, and assembled into three-dimensional shapes at the factory. Unlike flat panels, which distribute stacking pressure across their entire surface, cassettes concentrate stress at the fold lines and corners.

Why pre-bent corners are vulnerable:

Factor	Vulnerability
Stress concentration	The fold line is already work-hardened during bending; additional stress causes cracking
Geometric projection	Corners extend beyond the panel plane, making them the first points of contact
Limited contact area	Small surface area means high pressure per square millimeter
Core exposure	Cut edges at corners expose core material to moisture and impact

2. The Five Causes of Step Over Damage

Cause 1: Improper Palletization of Cassettes

Flat panels can be stacked directly on top of each other with protective interleaving. Pre-bent cassettes cannot. When one cassette is placed directly on another, the lower cassette's corners bear the entire weight of the stack above. The result is crushed corners on lower panels.

The Fix: Cassettes must be nested or separated with custom supports that distribute weight to structurally sound areas, not corners. For folded panels, use edge protectors and corner caps to distribute pressure away from fold lines. When stacking multiple cassettes, place rigid spacers between layers at structural ribs—never at corners.

Cause #2: Inadequate Corner Protection

Bare aluminum corners have no defense against impact. A single bump during forklift loading can deform a corner beyond repair.

The Fix: Every corner of every pre-bent panel must be fitted with a protective cap before packing. Options include:

Corner Protection Type	Application	Thickness
Foam corner protectors	General transport, moderate protection	5-10mm
Plastic corner guards	Heavy-duty, reusable	2-3mm rigid
Cardboard L-corners	Light-duty, economical	3-5mm multi-layer
Custom-molded EPP foam	High-value, complex shapes	0-20mm

         Some manufacturers use foam protection strips on the four corners of each panel, effectively absorbing external impacts during transport and preventing the corners from contacting each other.

Cause 3: Stacking Height Exceeding Limits

The weight of multiple panel layers compresses the lower corners, even with protective packaging.

The Fix: ALUCOBOND specifies that pallets should be stacked one over the other with a maximum of 6 pallets of the same format stacked on top of each other (heavy pallets at the bottom). For pre-bent cassettes, reduce maximum stack height to 3-4 pallets, depending on cassette depth and material thickness.

Cause 4: Vertical Storage of Bent Panels

Storing pre-bent panels on their edge is catastrophic. The weight of the panel bears entirely on the bottom corners, causing immediate deformation.

The Fix: Pre-bent panels must be stored flat. ALUCOBOND® explicitly instructs: "Store the pallets stacked one over the other (do not store ALUCOBOND panels standing vertically)" . If vertical storage is unavoidable for flat panels, pre-bent cassettes should never be stored vertically.

Cause 5: Forklift Impact During Loading

The most common moment of corner damage is not during transit but during loading and unloading. A forklift operator turning too tightly or setting a pallet down unevenly can crush corners before the truck leaves the factory.

The Fix: Train forklift operators on ACP-specific handling. Use pallets with corner bumpers. Inspect corners immediately after loading, not just at destination. When picking up pallets, set the maximum fork width to 1.00m–1.20m, pick up the pallet with slightly raised forks, and pick up the complete pallet—do not draw or push.

3. Packaging Specifications for Pre-Bent Corners

To ensure step over damage does not occur, include these specifications in your procurement documents:

Corner Protection

Specification	Requirement
Corner caps	Foam, plastic, or multi-layer cardboard on all four corners of each panel
Edge protection	Rigid edge guards along all fold lines
Interlayer cushioning	Foam sheets or corrugated cardboard between stacked cassettes
Pallet edge bumpers	Protective corners on the pallet base to absorb forklift impacts

        Stacking and Palletization

Specification	Requirement
Maximum stack height	4 pallets for pre-bent cassettes (6 for flat panels)
Pallet type	Wooden pallets with ISPM-15 heat treatment; no protruding nails
Panel orientation	Flat only—no vertical storage of bent panels
Load distribution	Rigid spacers are placed at structural ribs, not at corners

         Wrapping and Securing

Specification	Requirement
Stretch wrap	Full pallet wrap to prevent shifting
Strapping	Polyester strapping with edge protectors; never steel strap directly on corners
Moisture protection	Polythene sheeting or shrink wrap over the entire pallet
Labeling	"Pre-bent corners—do not stack heavy" is visible on all sides

Loading Checklist

- Forklift fork width set to 1.00m–1.20m maximum

- Pallet picked up completely—not drawn or pushed

-  Corner bumpers installed on pallet base

- No overhang beyond pallet edge

- Stack height confirmed within limits

Transport Requirements

- Flatbed or enclosed trailer with secure tie-downs

- Soft straps (not chains or wire ropes) for securing

- No heavy cargo loaded above ACP pallets

- Driver instructed on "no step over" handling

Unloading Checklist

- Inspect corner protection before accepting shipment

- Document any visible corner damage on the delivery receipt

- Do not accept damaged pallets without exception notation

- Store flat within 24 hours of delivery

5. Inspection Protocol for Receiving

Upon delivery, inspect each pallet for step-over damage before signing the bill of lading:

Inspection Point	Pass Condition	Fail Condition
Corner geometry	90° angle, no visible deformation	Rounded, crushed, or splayed corners
Fold line integrity	No cracks or white stress marks	Hairline cracks or visible fractures
Corner protection	Intact and in place	Crushed, missing, or displaced
Pallet condition	Square, no leaning	Tilted, signs of shifting
Strapping tension	Secure but not crushing	Broken straps or corner indentation

         Document any damage with photographs and a written description. If corners are damaged, do not accept the shipment without a credit agreement.

6. Procurement Specifications for Supplier Contracts

To hold suppliers accountable for corner protection, include these clauses in purchase orders:

Clause 1: Corner Protection Requirement

"All pre-bent aluminum composite panels shall be packaged with rigid corner protectors on all four corners. Foam, plastic, or multi-layer cardboard corner caps are acceptable. Panels without corner protection shall be rejected at receiving."

Clause 2: Stacking Limitation

"Pallets containing pre-bent cassettes shall not be stacked more than four high. Each pallet shall be clearly labeled with the stacking height limit."

Clause 3: Vertical Storage Prohibition

"No pre-bent panels shall be stored vertically at any point from factory loading to jobsite delivery. Violation of this requirement voids damage claims against the carrier."

Clause 4: Inspection Hold Point

"Supplier shall provide dated photographs of corner protection on all pallets before loading. Shipment shall not depart without inspection approval."

Clause 5: Damage Responsibility

"Supplier accepts responsibility for corner damage occurring during transport when packaging does not meet specified requirements. Carrier damage claims shall be handled by the supplier when the packaging is non-compliant."

7. Conclusion

Step over damage to pre-bent aluminum composite panel corners is preventable. The solution requires three layers of protection: corner caps that absorb impact, proper palletization that distributes weight away from fold lines, and handling discipline that respects the vulnerability of formed corners.

For procurement professionals, the cost of corner damage is measured not only in replacement panels but in project delays, installation rework, and strained supplier relationships. When you specify corner protection, stacking limits, and handling protocols, you ensure that the precision corners you paid for arrive intact—ready for installation, not rejection.
