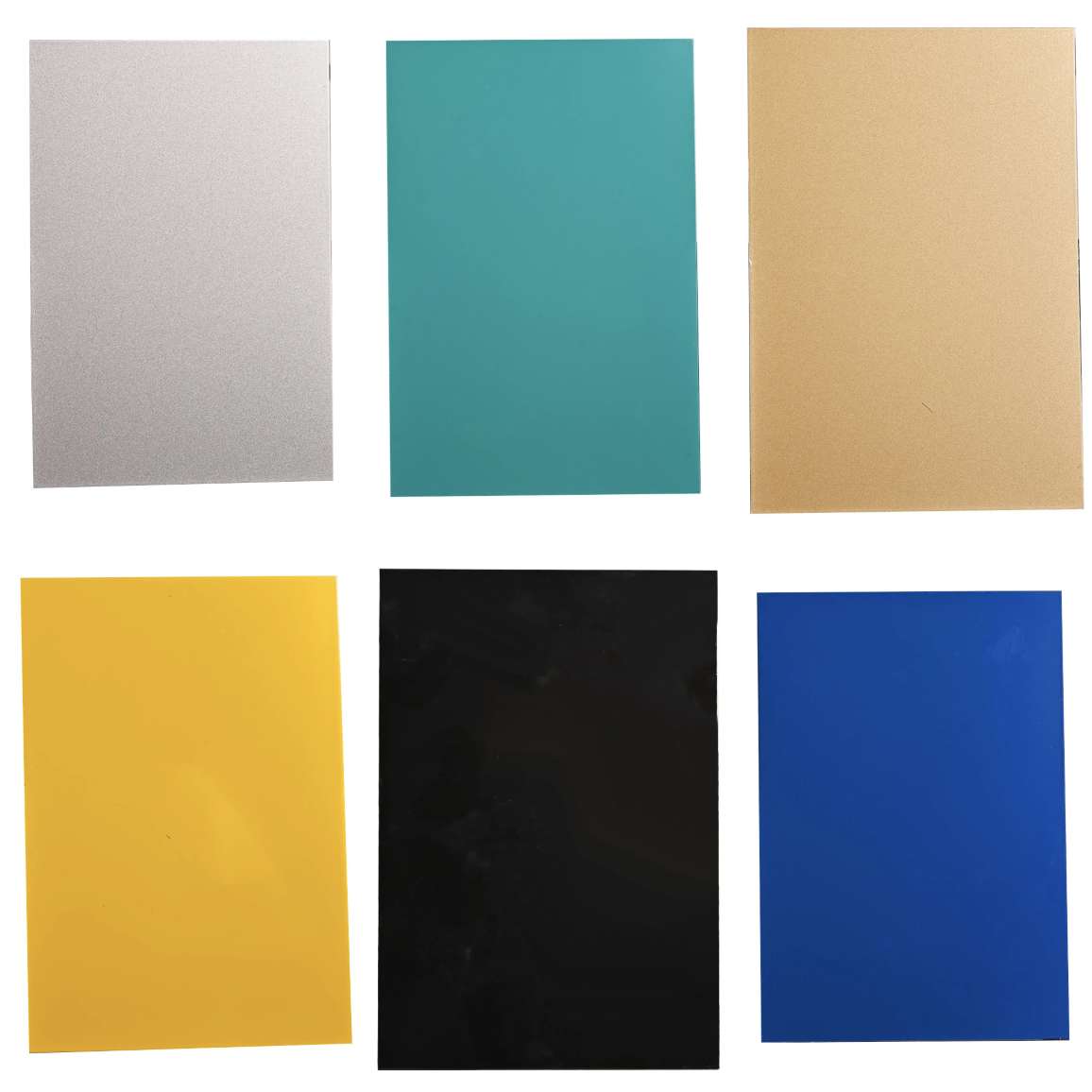

How to Verify Aluminum Skin Thickness on Your Delivered Aluminum Composite Panels

How to Verify Aluminum Skin Thickness on Your Delivered Aluminum Composite Panels

You specified 0.50mm aluminum skins. You paid for 0.50mm aluminum skins. The supplier's certificate says 0.50mm aluminum skins. But what actually arrived at your job site?

The thickness of the aluminum skins is one of the most critical—and most frequently manipulated—specifications in aluminum composite panel (ACP) manufacturing. Thinner skins mean lower material cost for the supplier, but they also mean reduced impact resistance, lower wind load capacity, and increased risk of panel distortion and corrosion.

For procurement professionals, verifying aluminum skin thickness is not optional. It is a fundamental quality check that protects your project from hidden specification downgrades. This guide explains how to perform this verification accurately, what tools to use, and what tolerances to enforce.

Why Aluminum Skin Thickness Matters

The aluminum skins are not just decorative surfaces. They provide the structural strength of the composite panel.

The risk of thinner skins: A panel specified with 0.50mm skins but delivered with 0.30mm skins has lost 40% of its aluminum mass. It will be more prone to denting, bending under wind load, and oil canning. In coastal environments, thinner skins also mean less sacrificial material before corrosion perforation occurs.

Understanding Industry Standards for Skin Thickness

Reputable aluminum composite panel standards specify minimum skin thickness requirements.

Important note: Many procurement disputes arise because the purchase order specified "4mm ACP" without specifying individual skin thickness. A 4mm panel can have 0.50mm skins (3.00mm core) or 0.30mm skins (3.40mm core). Always specify skin thickness separately.

Tools for Measuring Aluminum Skin Thickness

1. Digital Caliper (for Cut Edges)

Best for: Measuring skin thickness at panel edges (destructive or edge-accessible)

Specifications required:

- Resolution: 0.01mm (0.0005")

- Accuracy: ±0.02mm

- Jaw depth: Minimum 40mm to reach beyond edge effects

Procedure:

1. Ensure the caliper is zeroed before use.

2. Measure at the cut edge of the panel.

3. Grip only the aluminum skin (not the core) between the caliper jaws.

4. Take measurements at multiple locations along each edge.

Limitation: Cannot measure interior areas of the panel without cutting.

2. Ultrasonic Thickness Gauge (Non-Destructive)

Best for: Measuring skin thickness anywhere on the panel without damaging it

How it works: An ultrasonic transducer emits a pulse that travels through the aluminum skin, reflects off the aluminum-core interface, and returns to the transducer. The gauge calculates thickness based on the time-of-flight and the known sound velocity of aluminum.

Specifications required:

- Resolution: 0.01mm

- Accuracy: ±0.01mm to ±0.03mm depending on model

- Frequency: 10–20 MHz for thin aluminum (0.2–1.0mm range)

- Capability to measure individual layers on a multi-layer composite

Critical calibration step: Ultrasonic thickness gauges must be calibrated using a reference standard of known thickness. The calibration should be verified at the beginning and end of each inspection session. Temperature also affects sound velocity; allow the gauge and panels to stabilize at room temperature (20°C ± 5°C) before measuring.

Advantage: Non-destructive; can measure skin thickness at any point on the panel.

3. Micrometer (for Destructive Sampling)

Best for: Critical projects where destructive sampling is acceptable

Procedure:

1. Cut a small section from a sacrificial panel.

2. Separate the aluminum skin from the core (peel or dissolve adhesive).

3. Measure the bare aluminum skin using a micrometer with 0.001mm resolution.

Advantage: Most accurate method; removes any adhesive residue that could affect readings.

Disadvantage: Destroys the panel.

4. Eddy Current Thickness Gauge (for Coated Surfaces)

Best for: Measuring the total thickness of aluminum + coating, then subtracting coating thickness

Note: This method measures total metal thickness (aluminum skin plus any primer/coating that contains metal). For accurate skin thickness, you must also measure and subtract the coating thickness using a separate coating thickness gauge.

Step-by-Step Verification Procedure

Step 1: Prepare Your Tools

- Digital caliper (resolution 0.01mm) or ultrasonic thickness gauge

- Calibration standards (certified thickness blocks)

- Cleaning cloth

- Inspection checklist

- Camera for documentation

Step 2: Calibrate Your Equipment

For ultrasonic gauges:

1. Verify calibration using a reference standard of known thickness (e.g., 0.50mm aluminum shim).

2. Record as-found readings before any adjustments.

3. Adjust the velocity setting if necessary to match the reference standard.

4. Re-verify after adjustment (as-left readings).

5. Document calibration results.

For calipers:

1. Close jaws completely and verify zero reading.

2. Check against a certified standard (e.g., 0.50mm feeler gauge).

3. Record verification.

Step 3: Select a Representative Sample

Important: Select panels from different bundles, different positions in the stack (top, middle, bottom), and different pallets. This captures variation that might be concentrated in specific areas of the shipment.

Step 4: Measure Each Sample Panel

For each panel, measure at a minimum of 5 locations:

1. Four corners (within 50mm of each corner)

2. Center (geometric center of the panel)

Additional measurements for panels over 2m in length:

- Midpoints of each edge

- Quarter points along length

Record each measurement with the exact location marked on a diagram.

Step 5: Calculate and Compare to Specification

Typical acceptance tolerances:

Step 6: Document Everything

For each measurement, record:

- Panel identification number (bundle ID and position)

- Measurement location (corner 1, corner 2, center, etc.)

- Measurement value (to 0.01mm)

- Instrument used and calibration status

- Inspector name and date

Photograph the measurement process with the gauge reading visible alongside the panel and its identification label.

Common Problems and How to Address Them

Problem 1: Inconsistent Measurements

Possible causes:

- Caliper not zeroed

- Measuring core material instead of aluminum skin

- Adhesive residue on the skin edge

- Burrs or deformation at the cut edge

Solution: Clean the edge thoroughly. Use magnification to confirm you are gripping only the aluminum. Take multiple readings at slightly different positions and average them.

Problem 2: Ultrasonic Gauge Reads the Thickness of the Core Instead of Skin

Possible causes:

- Gauge frequency too low (penetrates core)

- Gauge not calibrated for thin-layer measurement

- Poor acoustic coupling

Solution: Use a higher-frequency transducer (15–20 MHz) designed for thin materials. Apply adequate couplant. Verify with a known reference standard.

Problem 3: Supplier Disputes Your Measurements

Solution:

1. Use a calibrated, certified instrument.

2. Follow a documented, repeatable procedure.

3. Engage a third-party laboratory to perform independent measurements.

4. Refer to the acceptance criteria in your purchase contract.

5. If the dispute continues, follow the double sampling and retesting procedure described in industry standards: take twice the original sample size and retest; if failures persist, the batch is rejected.

What to Do If Skin Thickness Is Below Specification

If your verification reveals that the aluminum skin thickness does not meet the specified minimum:

Do not accept thinner skins for exterior applications, high-rise buildings, or coastal environments where wind loads and corrosion resistance are critical.

Incorporating Skin Thickness Verification into Your Procurement Process

Before Ordering

- Specify skin thickness explicitly in your purchase order: "Minimum aluminum skin thickness 0.50mm per skin, top and bottom."

- Reference industry standards (e.g., ASTM B209 for aluminum sheet tolerances).

- Require mill certificates showing aluminum alloy and thickness for the specific batch.

- Include acceptance criteria and rejection rights in the contract.

During Production

- Request pre-production samples (minimum 5 panels) for thickness verification.

- Conduct third-party in-process inspection, including random thickness checks during slitting and lamination.

Pre-Shipment

- Engage a third-party inspector to verify skin thickness on randomly selected finished panels before packing.

- Require a batch-specific thickness report with measurements from at least 10 panels.

Upon Delivery

- Perform incoming inspection before signing the delivery receipt.

- Reject shipments where >5% of measured panels fall below minimum thickness tolerance.

- Document all rejections with photographs and measurement records.

Red Flags That Indicate Skin Thickness May Be Below Specification

Conclusion: Verify Before You Install

Aluminum skin thickness is not a detail to be taken on faith. It is a measurable, verifiable specification that directly impacts the structural performance, impact resistance, and durability of your facade.

For procurement professionals, the message is clear: specify skin thickness explicitly, require traceable documentation, and verify every shipment using calibrated instruments and a documented sampling plan. The cost of verification—a few hours of inspector time and a $200–$500 ultrasonic gauge or caliper—is negligible compared to the cost of a facade that dents, warps, or fails under wind load because the aluminum was thinner than specified.

When in doubt, measure. When measurements fall below tolerance, reject. Your project—and your reputation—depend on it.
