Imagine a high-rise building with a catastrophic fire spreading from floor to floor in minutes—not through the interior, but racing up the exterior wall assembly. This is precisely the scenario that building inspectors are trained to prevent.

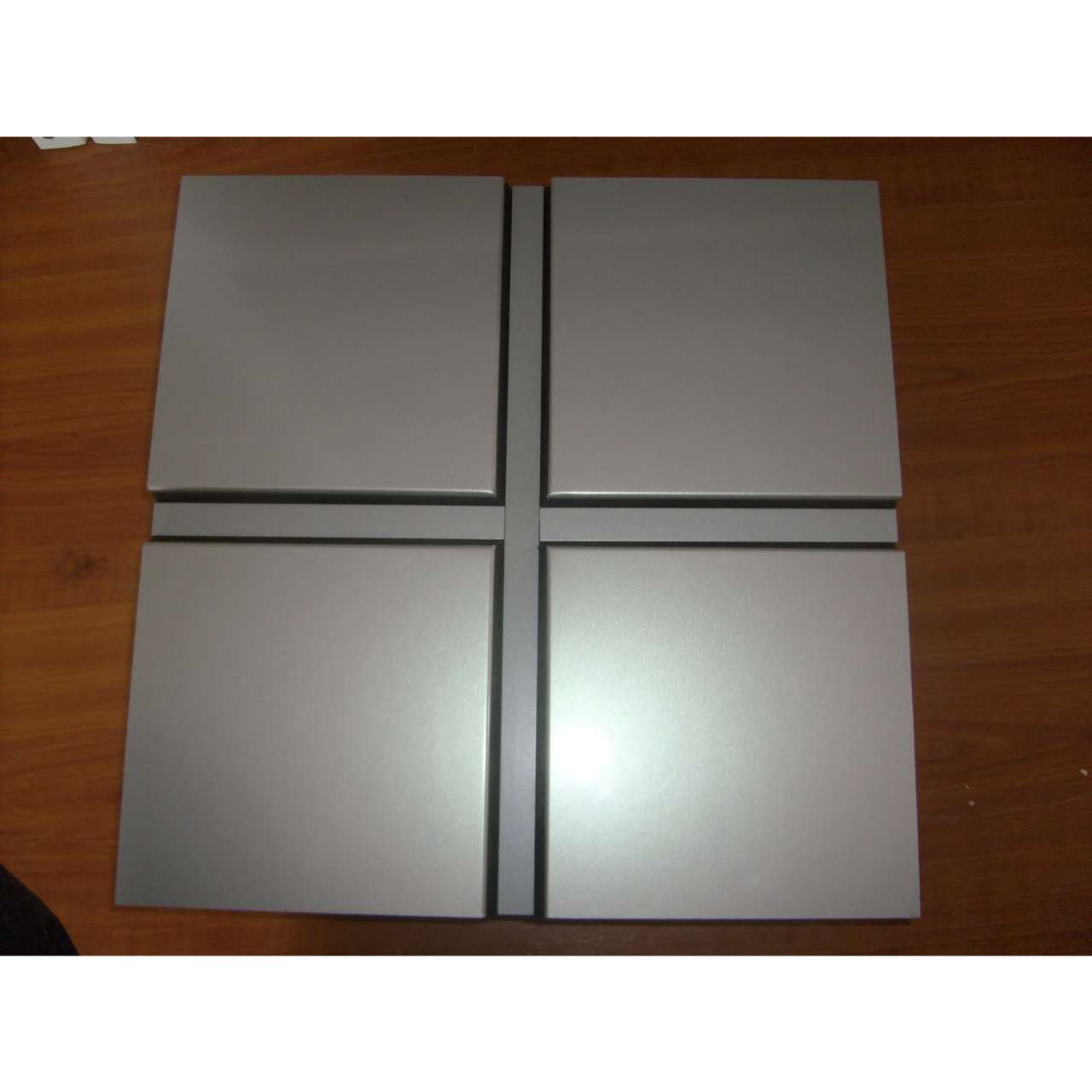

For procurement professionals, understanding why inspectors reject aluminum composite panels (ACPs) without NFPA 285 compliance is essential. This article explains the critical distinction between component testing and full assembly testing, the legal requirements of the International Building Code (IBC), and why inspectors demand proven compliance before approving any high-rise installation.

1. The Fundamental Flaw of Component-Only Testing

        The primary reason inspectors reject non-compliant ACPs is that most suppliers provide only **component-level test reports**—not full system tests. This is a fatal gap in proving fire safety.

ASTM E84 vs. NFPA 285

       Many suppliers present an ASTM E84 "tunnel test" certificate, which measures the flame spread index (FSI) of a material sample. While this is a valid test for the panel itself, it is completely inadequate for evaluating a complete high-rise wall system.

- ASTM E84 (Component Test): Tests a small sample of the panel in isolation. A panel may achieve a Class A rating (FSI ≤25) on this test.

- NFPA 285 (Assembly Test): Tests a full-scale, multi-story mock-up of the entire wall assembly, including the ACP, insulation, air gap, framing, and attachments.

An unqualified product might pass the small-scale "tunnel test" for the panel itself while failing the rigorous NFPA 285 assembly test disastrously.

The Second-Floor Fire Propagation Danger

The NFPA 285 test protocol specifically simulates a fire exiting a window. The test fails if the fire spreads vertically 10 feet above the window opening or horizontally 5 feet from the centerline. This realistic scenario cannot be simulated by testing a single panel in a lab furnace.

2. The Legal Mandate of the International Building Code (IBC)

Building inspectors enforce the law. They do not have the authority to accept a supplier’s promise that a product is safe; they must verify compliance with the IBC, which has adopted NFPA 285 as the benchmark for exterior walls.

The 40-Foot Threshold

Under the IBC, high-rise buildings (generally those over 40 feet, approximately 3-4 stories) must have exterior walls tested to NFPA 285 when they contain combustible components. The Virginia Administrative Code explicitly requires that "exterior wall assemblies shall be tested in accordance with, and comply with, acceptance criteria of NFPA 285" .

Clarified Requirements for MCM and HPL

Recent code changes (Proposal FS116-24) have clarified that specific materials like Metal Composite Material (MCM), which includes ACPs, must comply explicitly with NFPA 285 acceptance criteria. Inspectors are now strictly enforcing that the test report must match the exact assembly being built.

3. The Inspection Reality: Documents, QR Codes, and Field Verification

When an inspector arrives on site, they are looking for specific evidence of compliance.

1. The NFPA 285 Assembly Design Number

A compliant product will be listed in a directory (such as the Intertek Directory of Building Products) with a specific Design Number. For example, Nichiha USA holds Design Numbers like NUI/FRCP 30-01 for their NFPA 285 compliant assemblies. The inspector will check if the wall assembly on your blueprint matches the tested assembly in the database. If you change the insulation type or the air gap, the report is invalid.

2. The Air Gap Limitation

Historically, NFPA 285 placed strict limits on the size of the air cavity (rainscreen gap) behind the panel. However, recent advancements have occurred. ALUCOBOND PLUS recently became the first ACM manufacturer to pass NFPA 285 with air cavity gaps up to 7 inches when utilizing specific mineral wool insulation. If your supplier cannot prove their specific air gap size passed the test, the inspector will reject the installation.

3. The Requirement for a Full System, Not Just a Panel

A critical reason for rejection is the discovery that the supplier provided a certificate for the panel alone, but not the system. As one industry expert notes, "Having just one system component meet performance requirements does not necessarily mean the collection of materials used in the wall assembly will perform well together". Without a Design Number that lists the insulation, WRB, and attachments, the inspector has no choice but to issue a stop-work order.

4. The Consequences of Non-Compliance

Failed Inspections and Stop-Work Orders

If your ACPs lack valid NFPA 285 assembly testing for your specific project configuration, the building inspector will fail the inspection. This results in construction halting, costly delays, and potential legal disputes.

Legal Liability

The 2024 IBC updates have tightened the language regarding "non-combustible" components. If a fire occurs and the cladding is found to lack proper NFPA 285 verification, liability falls on the specifier, contractor, and building owner—not just the supplier.

Conclusion: Verification Is Non-Negotiable

Building inspectors reject ACPs without proven NFPA 285 compliance because the law requires full system verification—not just component testing. To avoid rejection, procurement professionals must:

- Verify the Design Number in accredited databases like Intertek.

- Ensure the entire wall assembly (insulation, air gap, attachments) matches the tested configuration exactly.

- Confirm that recent code changes (such as 2024 IBC requirements for air gaps) have been addressed by the supplier.

Do not accept generic "Class A" certificates. Demand the NFPA 285 Design Number.
